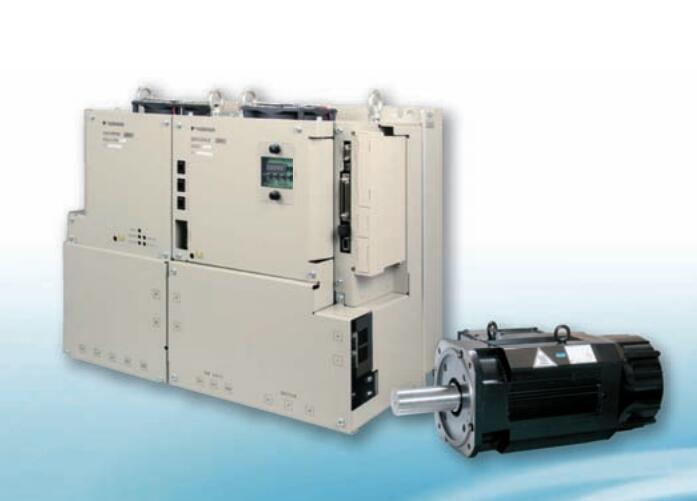

Large capacity SGMVV type servo motor.
Rated output: 55KW.
Voltage: three phase AC400V.
Serial encoder: 20 bit delta.
Rated speed: 1500r\/min.
The main mechanical structure: support mounting type, straight shaft (no keyway and screw).
Optional parts: keep the brake (DC24V), with dust.
The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r\/min and 1500r\/min products SGDV-170D21B
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenSigma -v series servo unit SGDV.
Maximum applicable motor capacity: 1kw.
Power supply voltage: three phase AC400V.
Design sequence: A type.
Interface: analog voltage, pulse sequence type (rotary servo motor).
Optional (hardware): DB resistance external type.
Excellent mechanical properties, do the best in the master!
Easy and efficient work, is no longer a dream,
Sigma -v series servo drive, you can make your dreams come true.
Sigma -v series is equipped with new free adjustment function,
Broke the common sense of the servo drive "can''t run smoothly without adjusting",
To achieve a pass that is to use.
A new type of advanced automatic tuning function Sigma -v series,
The installation time can be shortened, and the performance of the machine can be fully played.High performance, use the best type of servo unit (purpose type).
Maximum applicable motor capacity: 0.75kw.
Power supply voltage: single phase AC100V.
Interface: analog voltage, pulse sequence type (rotary servo motor).
Design sequence: A.
Hardware specification: base mounting type (standard).
Function: vibration suppression function upgrade.
Use the best type of sigma -V-FT series
According to different uses, there are 5 equipped with a convenient function of the servo unit models.
FT001 (vibration suppression function to upgrade specifications): by strengthening the vibration suppression function, shorten the positioning time.
FT003 (pressure feedback function): high precision pressure control, to promote the high performance of the device.
FT005 (support for rotary table purposes): with the rotation of the coordinate function and fixed point through the output function, can be smooth and high-precision control of rotary table.
FT006 (fixed point through the output function): no need to pass through the upper device can be set through the output (Chu Fa).
FT008 (absolute value system support): the absolute value of the system can be constructed by any upper controller.
SGDV-170D21B Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGDV-170D21B&select=5
