Sigma -V series servo motor SGMJV.
Rated output: 0.2KW (200W).
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with oil seal.
Medium inertia.
Instantaneous maximum torque (rating 350%).
Equipped with a high resolution serial encoder (13\/20 bit).
Max speed up to 6000r\/min.
Variety is complete (50 ~ 750W, with hold brake) SGDV-780A05B
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot，
Handling machinery，
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V 1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.

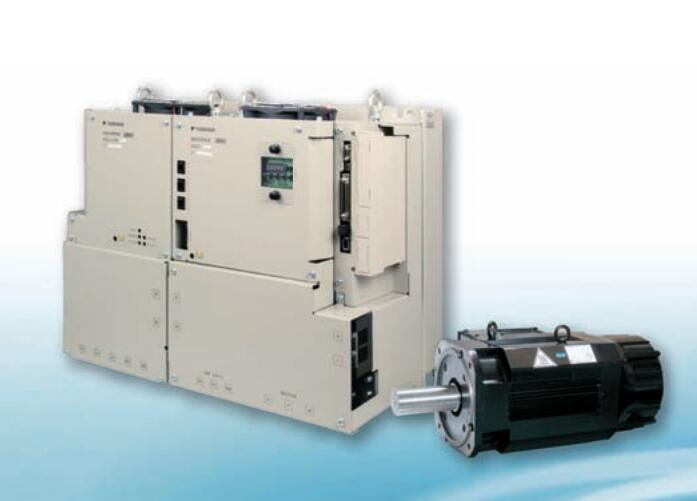

Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationLarge capacity SGMVV type servo motor.
Rated output: 30KW.
Voltage: three phase AC200V.
Serial encoder: 20 bit absolute value type.
Rated speed: 1500r\/min.
The main mechanical structure: support mounting type, straight shaft (with keyway and screw).
Optional parts: with hold brake (DC90V).
The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r\/min and 1500r\/min products.
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenSigma -v series servo unit SGDV.
Maximum applicable motor capacity: 6kw.
Power supply voltage: three phase AC400V.
Design sequence: A type.
Interface: MECHATROLINK- II communication command type (linear servo motor).
Matching (hardware): paint.
Realize real time communication.
The maximum transmission speed of 10Mbps and can be set to the communication cycle 250 s ~ 4ms,
Achieved a maximum of 30 stations in the high speed control. Through the high speed of communication,
Can send and receive all kinds of control information in real time.
Energy saving and high efficiency.
A maximum of 30 stations can be connected to the communication lines, can significantly reduce the wiring costs and time.
The command connector of the upper controller only needs 1,
Pulse generator for D/A converter or position instruction without speed / torque command.
High precision motion control is realized.
In addition to torque, position and speed control, but also to achieve high precision synchronization phase control.
Because the control mode can be switched on line, the complicated mechanical action can be realized more effectively and smoothly.
SGDV-780A05B Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGDV-780A05B&select=5
