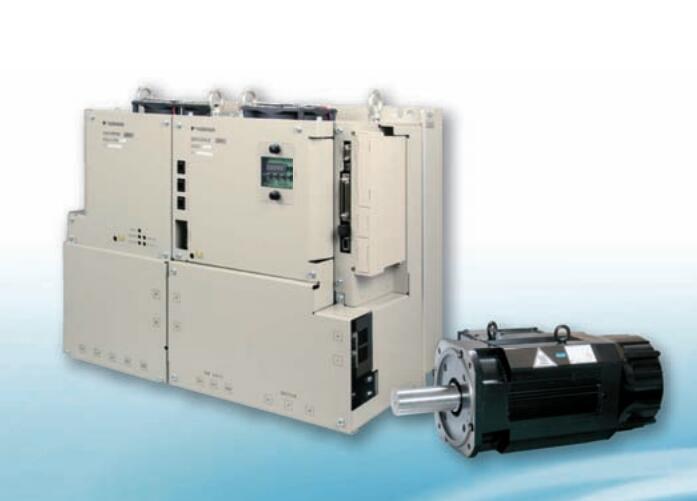

Large capacity servo unit.
Maximum applicable motor capacity: 37KW.
Power supply voltage: three phase AC400V.
Buckle: instruction to buy pieces of installation type (rotary servo motor used).
Design sequence: B.
Optional parts (hardware): base mounting type (standard).
Improve the performance of large torque transmission machinery!
Vibration suppression function.
When the driving system of the machine is vibrating, the observer is used to reduce the vibration and suppress the vibration of the device SGDV-2R8A05B
Friction compensation function.
Even when the load fluctuation, the gain can be suppressed without changing the position deviation.
Therefore, the overshoot can be suppressed to ensure the stability of the device.
Feature tracking control.
Even the lower mechanical properties, but also the characteristics of the mechanical recovery,
Make the mechanical properties of the control action, thereby reducing the time to adjust the timeServo motor type SGMPH (speed: 3000r/min).
Power: 0.2kw.
Power supply voltage: single phase AC200V.
Serial encoder: 16 bit absolute value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with DC90V brake.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated.。Equipped with DeviceNet communication function type servo unit (servo controlled power supply drive type)
Maximum applicable motor capacity: 1.5kw.
Power supply voltage: three phase AC400V.
Interface: instruction selection and installation (linear servo motor).
Matching (hardware): paint.
Matching (software): standard.
Matching (parameter): standard.
Optional modules: DeviceNet module (servo control power driver) + full closed loop module.
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit are connected through the communication network, the connection is greatly saved.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function.
SGDV-2R8A05B Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGDV-2R8A05B&select=5
