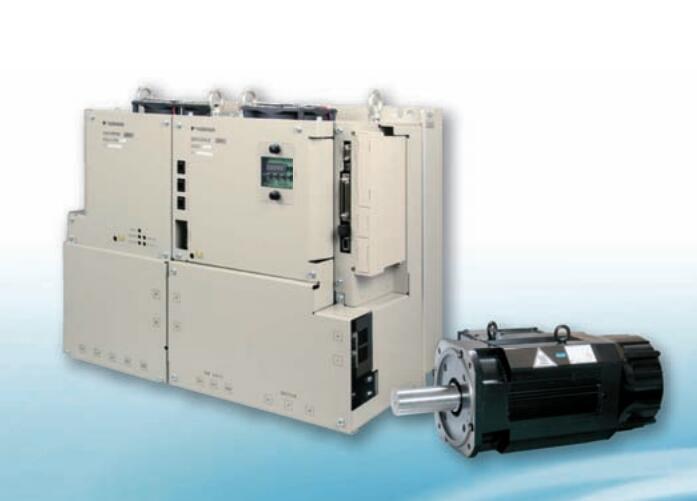

Sigma -V series servo motor SGMGV.
Rated output: 450W (0.45KW).
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with oil seal, with the brake (DC24V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit) SGDV-120A11B
Standard using IP67.
Use example:
Machine tool。
Transport machinery.
Handling machinery。
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationFull closed loop module.
Maximum applicable motor capacity: 5.0kw.
Power supply voltage: three phase AC200V.
Interface: analog voltage, pulse sequence type (rotary servo motor).
Design sequence: A.
Hardware specification: base mounting type (standard).
Matching (software): no matching (standard).
Matching (parameters): no matching (standard).
Optional modules: full closed loop module.
Full closed loop control system is used to control the rotating servo motor.
Please install the servo unit.
Using the position feedback signal which is output by the external encoder (linear grating ruler) installed on the side of the machine to realize the high precision and high response.
External encoder capable of corresponding high resolution (linear grating). Servo motor type SGMPH (speed: 3000r\/min).
Power: 0.2kw.
Power supply voltage: single phase AC100V.
Serial encoder: 16 bit absolute value.
Design sequence: Waterproof standard IP67.
Shaft end: straight shaft with screw.
Optional parts: no brake oil seal.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated
SGDV-120A11B Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGDV-120A11B&select=5
