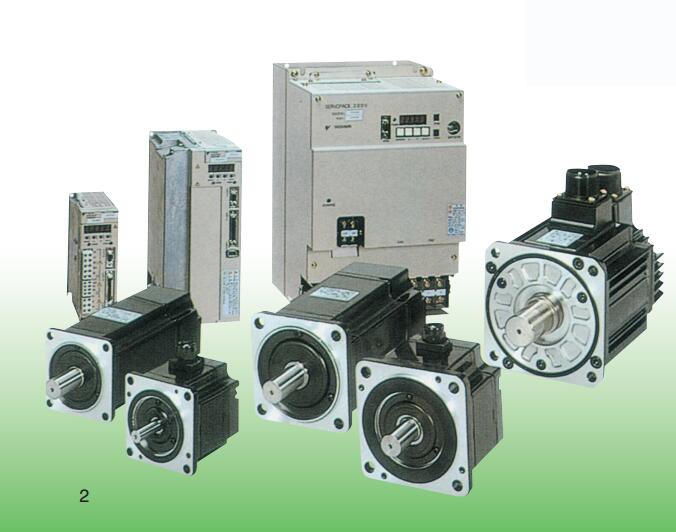

Servo motor SGMGH type.
Rated speed: 1000r/min.
Power: 0.6Kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: B.
Shaft end: taper 1/10, with parallel key.
Optional parts: with oil seal, DC90V brake.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain SGMPH-15ABE6B
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed control.













Servo motor type SGMPH (speed: 3000r\/min).
Power: 0.1kw.
Power supply voltage: single phase AC100V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft with screw key.
Optional parts: with oil seal, DC90V brake.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operatedSigma -v series servo unit SGDV.
Maximum applicable motor capacity: 3kw.
Power supply voltage: three phase AC200V.
Design sequence: A type.
Interface: analog voltage, pulse sequence type (linear servo motor).
Matching (hardware): base mounting type (standard).
With the latest technology to pursue the use of convenience.
The use of new non adjustment function, no need to adjust.
The vibration suppression function is also strengthened, and the load fluctuation can be effectively suppressed.
Greatly shorten the setting time.
Using engineering tool SigmaWin+ to set the guide function and the distribution confirmation function,
Can look at the picture simply to complete the start.
Achieve a high response 1kHz above.
Equipped with a new advanced automatic tuning function.
Through the model tracking control, the positioning time is shortened,
And through the vibration suppression function, easy to achieve a smooth mechanical control.
SGMPH-15ABE6B Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGMPH-15ABE6B&select=5
