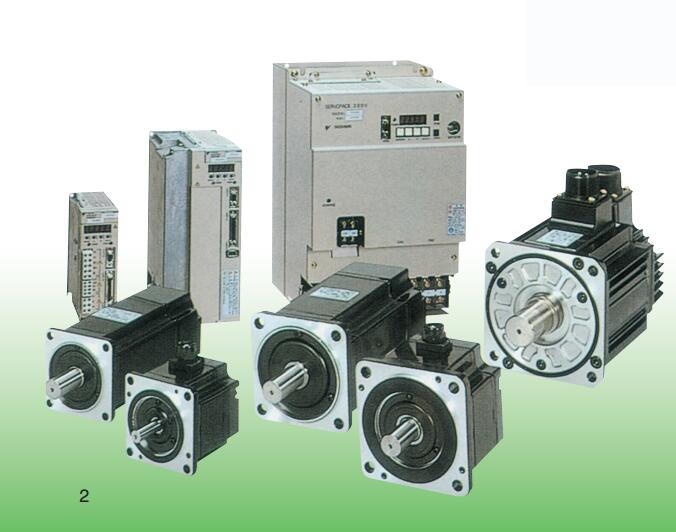

Servo motor type SGMPH (speed: 3000r\/min).
Power: 0.1kw.
Power supply voltage: single phase AC200V.
Serial encoder: 16 bit absolute value.
Design sequence: Waterproof standard IP67.
Shaft end: straight shaft without key.
Optional parts: with oil seal.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you SGMPH-15AAA4B
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operatedServo driver SGD7S.
Maximum applicable motor capacity: 2.0kW.
Voltage: three phase AC200V.
Interface: MECHATROLINK-II communication command type.
Design sequence: A.
Hardware purchase: rack installation specifications.
Performance excellence.
The performance and speed of the device can be improved.
Upgrade free adjustment function.
Without adjusting the operation, no vibration can be achieved.
To ensure that the procedures and parameters of the previous product compatibility.
After replacement of the product, can easily improve the performance of the device.
Sigma -7 series has rich models and related products.
Customers can easily build the system.
From selection to maintenance, rich service content.
Especially when the servo system is in trouble,
Can immediately grasp the product information in the field.
It is helpful to the servo performance of ultra high speed and ultra precision control.
Maximize the performance of the device, to solve the problemSigma -V series servo motor SGMGV.
Rated output: 4.4kw.
Power supply voltage: AC400V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft, without keyway (standard).
Optional: with oil seal, with the brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool。
Transport machinery.
Handling machinery。
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
SGMPH-15AAA4B Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGMPH-15AAA4B&select=5
