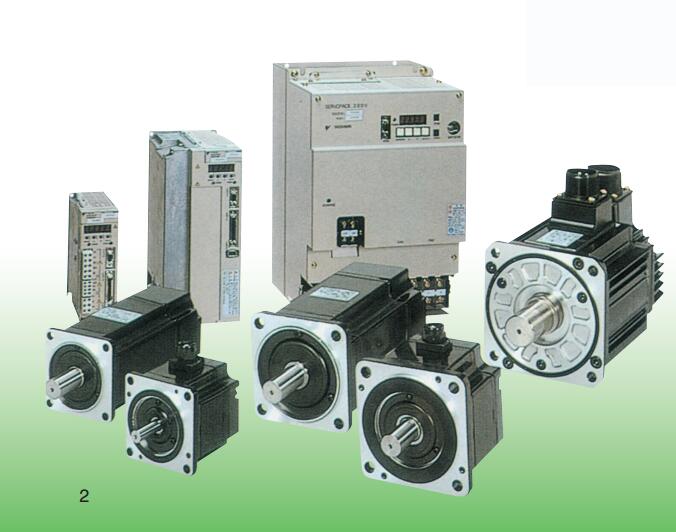

Servo motor SGMGH type.
Rated speed: 1000r\/min.
Power: 2.0kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: high precision machine tool.
Shaft end: straight shaft without key.







Servo motor SGMGH type.
Rated speed: 1000r\/min.
Power: 4.0kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: B.
Shaft end: taper 1\/10, with parallel key SGMPH-02ABA8E
Optional parts: with oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain.
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1\/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlLarge capacity SGMVV type servo motor.
Rated output: 22KW.
Voltage: three phase AC400V.
Serial encoder: 20 bit delta.
Rated speed: 1500r\/min.
The main mechanical structure: flange type, straight shaft (with keyway and screw).
Optional parts: keep the brake (DC24V), with dust.
The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r\/min and 1500r\/min products.
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenServo motor SGMSH type.
Rated speed: 3000r\/min.
Power: 1.0kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Key: straight shaft end uranium belt with screw.
Optional parts: with oil seal, DC90V brake.
Ultra high power response series: the need for small inertia, high torque.
Online automatic adjustment, automatic measurement of mechanical properties, set the required servo gain.
Even if the initial contact, can also be completed in a short time the best set.
Automatic identification of the motor, servo drive automatic identification of servo motor power, specifications, automatic setting motor parameters.
Standard for regenerative resistance connection terminals.
Connecting terminal equipped with external regenerative resistance,
Convenient connection regenerative resistor
SGMPH-02ABA8E Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGMPH-02ABA8E&select=5
