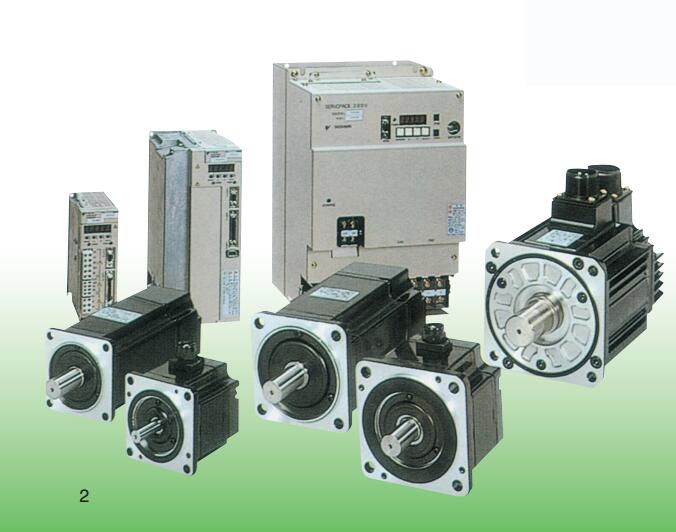

Servo motor type SGMPH (speed: 3000r\/min).
Power: 0.2kw.
Power supply voltage: single phase AC200V.
Serial encoder: 16 bit absolute value.
Design sequence: Waterproof standard IP67.
Shaft end: straight shaft without key.
Optional parts: with oil seal.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you SGMPH-01A1E8C
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operatedHigh performance, use the best type of servo unit (purpose type).
Maximum applicable motor capacity: 1.0kw.
Power supply voltage: three phase AC400V.
Interface: MECHATROLINK-III communication command type (rotary servo motor).
Design sequence: A.
Hardware specification: base mounting type (standard).
Function: to support the use of rotary table.
Use the best type of sigma -V-FT series
According to different uses, there are 5 equipped with a convenient function of the servo unit models.
FT001 (vibration suppression function to upgrade specifications): by strengthening the vibration suppression function, shorten the positioning time.
FT003 (pressure feedback function): high precision pressure control, to promote the high performance of the device.
FT005 (support for rotary table purposes): with the rotation of the coordinate function and fixed point through the output function, can be smooth and high-precision control of rotary table.
FT006 (fixed point through the output function): no need to pass through the upper device can be set through the output (Chu Fa).
FT008 (absolute value system support): the absolute value of the system can be constructed by any upper controller.
SGMPH-01A1E8C Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGMPH-01A1E8C&select=5
