Large capacity SGMVV type servo motor.
Rated output: 22KW.
Voltage: three phase AC200V.
Serial encoder: 20 bit absolute value type.
Rated speed: 1500r\/min.
The main mechanical structure: support mounting type, straight shaft (without keyway and screw).
Optional parts: with hold brake (DC24V).

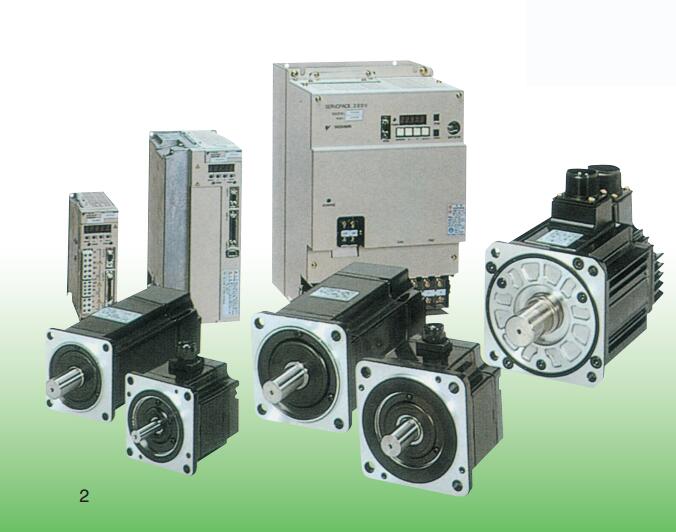

The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties SGMGH-55ACB2S
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r\/min and 1500r\/min products.
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenSGM7P type (rated speed: 3000r\/min) of inertia and flat servo motor with speed reducer.
Rated output: 1.5kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit absolute value type.
Design sequence: IP55.
Type of speed reducer: precision HDS planetary reducer.
Reduction ratio: 1\/11.
Shaft end: flange output.
Optional parts: with brake (DC24V).
YASKAWA Electric is a professional manufacturer in the field of motion control,
Is Japan''s first to do the servo motor company,
The product is known for its steady and rapid price, and its price is high,
Is the world''s largest sales, the use of the industry''s largest servo brand.
In China, Yaskawa servo for many years occupied the largest market share.
With the industry''s highest amplifier response, greatly reduced the set time.
YASKAWA Electric is the world''s leading manufacturer of power transmission products.
With the continuous deepening of China''s reform and opening up and economic development,
Many world-class companies have settled in Shanghai, and quickly expand its businessServo motor type SGMPH (speed: 3000r/min).
Power: 0.1kw.
Power supply voltage: single phase AC200V.
Serial encoder: 16 bit relative value.
Design sequence: A.
Shaft end: straight shaft with screw key.
Optional parts: with DC90V brake.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated.
SGMGH-55ACB2S Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGMGH-55ACB2S&select=5
