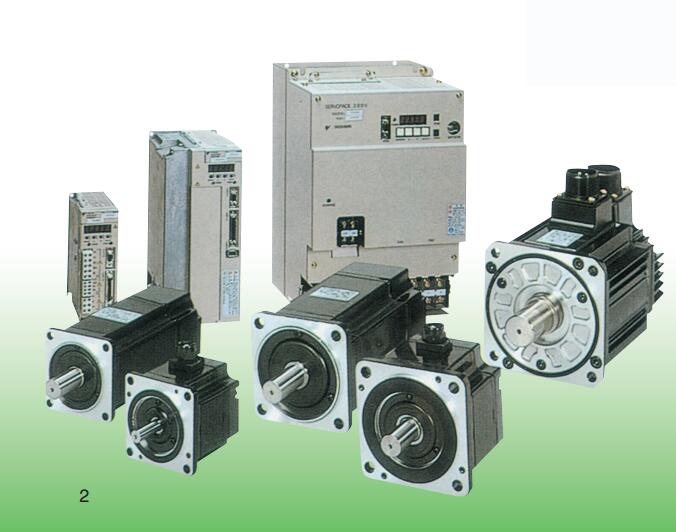

Servo motor type SGMPH (speed: 3000r/min).
Power: 0.75kw.
Power supply voltage: three phase AC200V.
Serial encoder: 16 bit absolute value.
Design sequence: A.
Shaft end: straight shaft with key.
Optional parts: with DC90V brake.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you SGMGH-30A2B2C
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated.High performance, use the best type of servo unit (purpose type).
Maximum applicable motor capacity: 2.0kw.
Power supply voltage: three phase AC400V.
Interface: analog voltage, pulse sequence type (rotary servo motor).
Design sequence: A.
Hardware specifications: paint.
Function: vibration suppression function upgrade.
Use the best type of sigma -V-FT series
According to different uses, there are 5 equipped with a convenient function of the servo unit models.
FT001 (vibration suppression function to upgrade specifications): by strengthening the vibration suppression function, shorten the positioning time.
FT003 (pressure feedback function): high precision pressure control, to promote the high performance of the device.
FT005 (support for rotary table purposes): with the rotation of the coordinate function and fixed point through the output function, can be smooth and high-precision control of rotary table.
FT006 (fixed point through the output function): no need to pass through the upper device can be set through the output (Chu Fa).
FT008 (absolute value system support): the absolute value of the system can be constructed by any upper controller.
SGMGH-30A2B2C Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGMGH-30A2B2C&select=5
