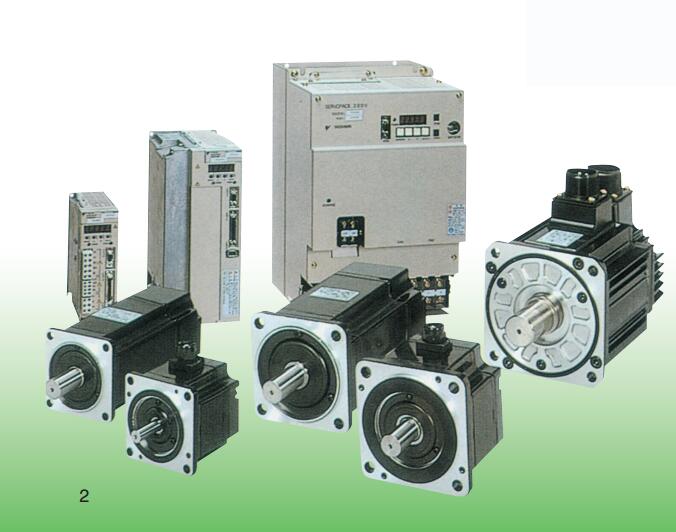

Equipped with DeviceNet communication function type servo unit (servo controlled power supply drive type)
Maximum applicable motor capacity: 1.5kw.
Power supply voltage: three phase AC400V.
Interface: instruction selection and installation (rotary type servo motor).
Matching (hardware): base mounting type (standard).
Matching (software): standard.
Matching (parameter): standard.
Optional modules: DeviceNet module (servo control power supply driver) SGMDH-40ACA6D
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit are connected through the communication network, the connection is greatly saved.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function.Equipped with DeviceNet communication function type servo unit (servo controlled power supply drive type)
Maximum applicable motor capacity: 6.0kw.
Power supply voltage: three phase AC200V.
Interface: instruction selection and installation (linear servo motor).
Matching (hardware): shelf installation type + paint.
Matching (software): standard.
Matching (parameter): standard.
Optional modules: DeviceNet module (servo control power driver) + full closed loop module.
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit are connected through the communication network, the connection is greatly saved.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function.
SGMDH-40ACA6D Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGMDH-40ACA6D&select=5
