Servo motor SGMGH type.
Rated speed: 1500r\/min.
Power: 2.9kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: high precision machine tool.
Shaft end: straight shaft without key.
Optional parts: with oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,

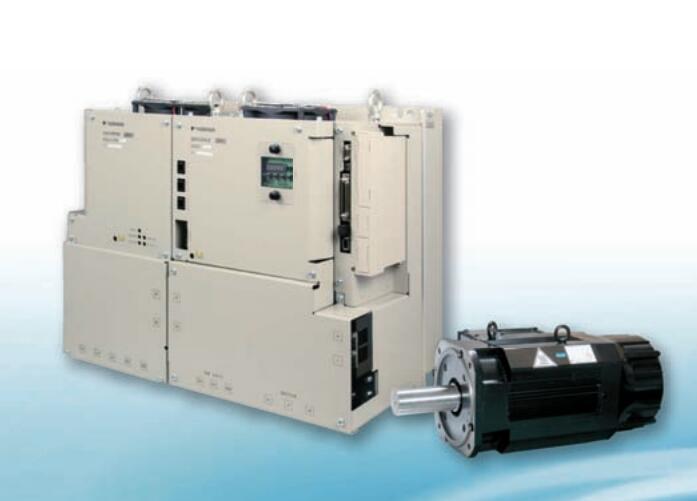

Alarm can only turn off the main circuit power supply, easy to maintain SGDV-131J11A003
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1\/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSecurity module.
Maximum applicable motor capacity: 6.0kw.
Power supply voltage: three phase AC200V.
Interface: MECHATROLINK- II communication command type (rotary servo motor).
Design sequence: A.
Hardware specification: rack mounting type.
Matching (software): no matching (standard).
Matching (parameters): no matching (standard).
Optional module: security module.
European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function.
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first).
Can easily achieve the best security design of mechanical systems.
Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions.
In addition, the monitoring time and other items can be changed through the parameter.
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized.
SGDV-131J11A003 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGDV-131J11A003&select=5
