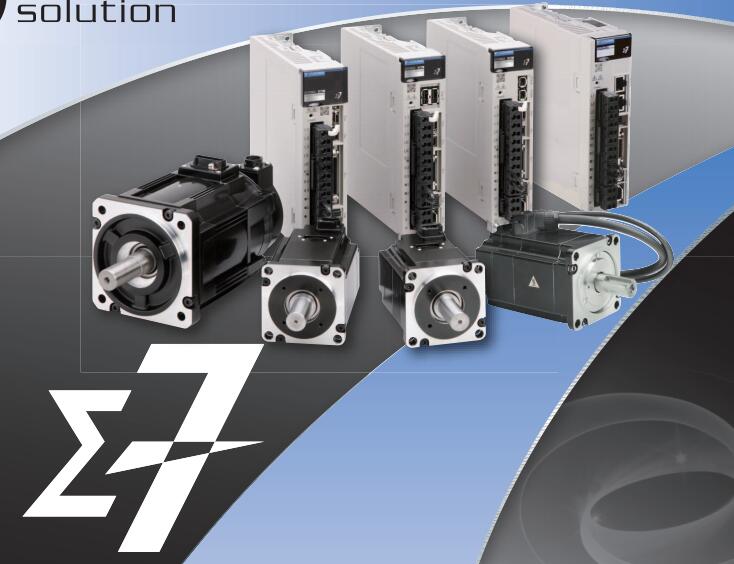

Large capacity SGMVV type servo motor.
Rated output: 30KW.
Voltage: three phase AC200V.
Serial encoder: 20 bit delta.
Rated speed: 1500r\/min.
The main mechanical structure: flange type, straight shaft (without keyway and screw).
Optional parts: do not buy pieces.
The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r\/min and 1500r\/min products SGD7S-2R8A00A
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenEquipped with DeviceNet communication function type servo unit (external power supply drive type)
Maximum applicable motor capacity: 0.2kw.
Power supply voltage: single phase AC100V.
Interface: instruction selection and installation (linear servo motor).
Matching (hardware): paint.
Matching (software): standard.
Matching (parameter): standard.
Optional modules: DeviceNet module (external power driver) + full closed loop module.
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit are connected through the communication network, the connection is greatly saved.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function.
SGD7S-2R8A00A Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGD7S-2R8A00A&select=5
